Excavator Rake Attachment – Boost Efficiency and Site Cleanup

Introduction to Mini Excavator Rake Attachments

One of the most underrated yet high-impact tools is a mini-excavator rake attachment. Precision and productivity are the keywords for a rake attachment, which changes the face of a standard excavator to a land clearing and grading machine with multiple functions.

It's not just digging or lifting that a rake powers your excavator to do but, raking through the soil, roots, rocks, and other debris as well as separating the materials that can be used from the waste.

So, a mini excavator rake can be defined as one of those giant mechanical combs that can deal with dirt, roots, and the most unmanageable types of rubble without any difficulty.

In comparison to a bucket, which is used for scooping and holding material, a rake is made for dragging and sifting and thus it is also the one that fits the best for the work of clearing brush, soil preparation for planting of any kind, and cleaning the demolition site. What you get here is a cleaned, leveled, and debris-free surface that is ready for construction or landscaping purposes.

Rake attachments, particularly, have become a vital turning point in the lives of contractors, landscapers, and farmers as they are the single-tool replacements for the multi-tool work that was done manually. The one-way attachment not only utilises the pulling of roots but also the separation of stones along with the efficient grading of the terrain.

How a Mini Excavator Rake Works

Just like a bucket, a rake attachment is also mounted on the coupler or the quick hitch of a mini-excavator. Sticking to the design, these curved hardened steel tines are evenly spaced. The soil and small materials pass through the space between each tine, while the larger debris such as the roots, stumps, and rocks are caught.

What the excavator arm does to the rake is it moves it over the surface, thus the rake is effectively combing or dragging the top layer of the ground. The operator’s job here is to control the angle and the force in such a way that the rake just barely touches the surface so the unwanted materials are lifted and not the soil beneath is disturbed too much.

Hydraulic vs. Manual Rakes

• Manual Rakes – In a manual rake, the attachment is connected directly without using any hydraulic lines. The raking process can be done by changing the angle and tilt of the excavator arm along with its other movements. These are basic, long-lasting, and work well for minor land clearance or the leveling of the earth.

• Power Rakes are one type of Hydraulic Rakes. Hydraulic cylinders or other hydraulic components like the tilt function, facilitate the operator’s control over the angle or rotation of the rake from the cab.

• The operator director is thus able to perform tasks like moving large areas quickly and easily, or working with difficult materials like compacted roots or concrete pieces, as seen in this example.

The rake is handy in both forward and reverse motions, subject to the type of terrain and rubbish condition. For instance, through the forward raking process soil is lifted and separated, on the other hand, the reverse raking is used to pull roots and branches into piles, thus making the removal process easier.

Main Types of Rakes for excavators

There isn’t just one ideal rake that fits every job. Its characteristics like the soil condition and excavator topology would dictate the most suitable model for a specific task.

Root Rake

The character of a root rake is such that it is designed for a heavy-duty job. So it tears the roots off along with the rest of the tree and rocks it is found in the soil. Consequently, it is the most efficient rake that does not take away too much topsoil used for forestry, farming, and land reclamation projects purposes to clear the ground.

Land Clearing Rake

It is the all-rounder type. Some of the common uses of such a tool (land clearing rake) include the removal of general debris, clearing brush, and grading. The contracting companies or contractors that are part of the construction or residential development are the main beneficiaries of such a tool.

Ditch or Grading Rake

As evident from its name, the main function of a grading rake is to help form the land and make it level. Grading squash’s wider tine spacing enables the better filtering and distribution of soil, thus ideal for landscaping and driveway construction.

Skeleton Rake

This specific kind is the representation of the skeletal frame and serves as a kind that can separate or sift large materials like stones or demolition dregs. Usually, when combined with a thumb or grapple, it is functional in cleanup after destructive and storm works.

Each of these rakes is available in several sizes, which are generally from 24 inches to 72 inches, depending on your mini excavator’s weight class.

Key Features and Design Components

The structure of a mini excavator rake may be seemingly insignificantly small, however, it is very effective which is largely due to 'several' key 'engineering' featu

Tines

The tines are the mainstay of the rake. They are produced of high tensile steel or heat-treated alloy from which they are fabricated so as to be resistant to bending and wearing out. The space between the tines is different for each model:

• Tight spacing (1.5–2 inches) for fine material separation.

• Wide spacing (3–6 inches) for large debris and roots.

Frame & Mounting Plate

The basic frame supports the tines and is fastened to the coupler of the excavator. The load is distributed evenly with a strong frame thus giving room for the prevention of cracks under stress.

Hydraulic Tilt or Angle System

Top standard rakes are equipped with the aid of the hydraulic tilt mechanism, which makes it possible for the operator to set the position of the working angle that can be up to 45 degrees. This facility is very useful in the case of working on uneven ground or the slopes of the trench.

Material & Coating

Top-of-the-line models are made of AR400 or Hardox steel that is recognized for its wear resistance property. Aside from these, some manufacturers also provide a powder-coated finishing on the product which acts as a barrier to rust and corrosion.

Weight and Balance

Rakes for mini-excavators have been created in such a way that they can be blended seamlessly with the boom arm as a result of which they are perfectly balanced. If the rake is not properly balanced it will put a lot of strain on the hydraulic system of the excavator leading to inefficiency and less lifespan.

Applications of Mini Excavator Rakes

Mini excavator Rake can be used in different ways across various industries. Some of the main usages are as follows:

Land Clearing

It is an ideal tool for getting rid of underbrush, small trees, and roots with no disturbance of the soil base. Land while contractors use them for site preparation of reforestation.

Debris and Waste Removal

After a storm or demolition, the rake can collect the debris that has been scattered very quickly and thus clean the area in a short time and in a safe way.

Soil Preparation and Leveling

Landscape installers use Rakes for flattening soil, gravel distribute, preparing turf or flowerbeds before planting.

Root and Stump Removal

The strong tines penetrate the soil, separating the roots and stumps; at the same time, ground remains smooth and aerated.

Agricultural and Forestry Work

Rakes are used by farmers to remove stones, branches, and other debris from the field, land for cultivation or irrigation period will be prepared accordingly.

Therefore, a rake attachment not only reduces your manual labor but also be two times productive whether you are doing a farm maintenance, cleaning a lot or site preparation of construction.

Benefits of Using a Rake Attachment

With the addition of a rake to your mini, it is like you have granted it the powers of Superman. In simple terms, it makes the mini-excavator a multi-purpose machine rather than a single one just meant for digging. The main reasons for operators and contractors, to get this attachment are as follows:

Increased Efficiency

A rake is a tool that allows one to do the same job that would have taken a longer time, in less time and with less effort. You can perform raking, grading, and cleanup at the same time with just one rake without the need to manually clear the debris or change the attachments one after another.

Due to the wide tine spread, you can move large amounts of material in a short time, thus saving you a lot of time for labor on site preparation.

Reduced Soil Disturbance

Unlike buckets or blades that dig into the earth, rakes only skim and clean the surface while the soil that is left under the surface is still intact. This is of utmost importance in landscaping as the maintaining of soil structure is one of the most important things.

Cost-Effective Solution

One of the main reasons why rakes are so popular among the workers is the fact that the workers can save a great amount of money by just buying one rake instead of multiple specialized tools. A good rake can do the job of land clearing, root removal, and leveling, which means both the money spent on equipment and the money spent on maintenance can be reduced significantly.

Durable and Long-Lasting

The top-notch rakes are made from the kind of steel which is very strong and can last for years even if used in harsh and difficult conditions. The simplicity (fewer moving parts) of rakes also means that they have lower maintenance costs compared to hydraulic attachments.

Easy Installation

Rakes that are most common fit directly into the quick coupler systems. The time to change between attachments is very short which makes it very convenient for the contractors who have different jobs and have to change tools all the time.

Multi-Industry Versatility

The rake attachments can be used in construction, agriculture, forestry, and landscaping, and can be helpful in these industries in many ways. The tool is just as easy to use for a person who is working on a small backyard as it is for a person who is managing a large estate.

Compatibility with Different Mini Excavator Brands

Mini excavator rakes are designed to be compatible with nearly all major brands and are generally provided in a universal design. However, to get the most productivity out of a rake, it is advised to utilize the one that fits perfectly with your excavator model.

Common Compatible Brands

• Caterpillar (CAT) Mini Excavators – Known for quick coupler systems; models like CAT 301.8 and 303.5 often use 36" to 48" rakes are standard.

• Kubota – Due to their standardized quick-attach mounts, they are highly compatible. The models like KX018-4, U25, and KX040-4 are well-suited for hydraulic or manual rakes.

• Bobcat – Among several options, it is one of the most referred to attachable features are “pin-on” or Bob-Tach couplers.

• John Deere, Sany, Yanmar, and Takeuchi – Each brand offers OEM or third-party compatible rakes via universal adaptors.

Universal Couplers

In case your machine doesn't match a specific rake mount, you are allowed to use universal pin-grabber couplers or hydraulic quick hitches. These are the adapters that enable the rake to be used on different brands without changing it.

Weight Class Consideration

Mini-excavators generally weigh anywhere from 1 to 6 tons. Hence, the weight of the rake should be way lighter than 10–15% of the operating weight of the excavator. If it is too heavy, it will cause the boom to overexert, and if it is too light, it will not run effectively.

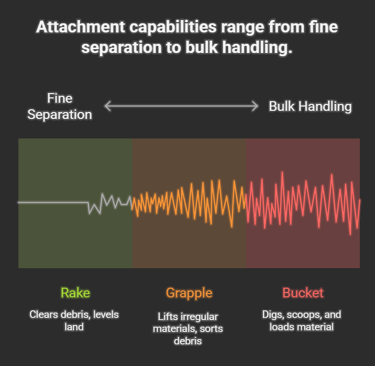

Comparison: Rake vs. Grapple vs. Bucket

Verdict: If you need clean, selective clearing and soil preparation, the rake wins hands down. But for heavy lifting and gripping, the grapple is unbeatable, while buckets remain the go-to for excavation work.

How to Choose the Right Size and Model

The choice of the proper rake attachment is more than just picking the one that fits. The excavator power, rake weight, tine spacing, and the work intended have to be balanced.

Match the Rake to the Excavator Size

• 1–2 Ton Mini Excavators: Use 24–36 inch rakes. Perfect for light landscaping or garden prep.

• 3–4 Ton Machines: Go for 36–48 inch models for moderate land clearing.

• 5–6 Ton Excavators: Opt for 48–60 inch heavy-duty hydraulic rakes for forestry or large-area cleanup.

• Tight spacing = Better material filtering (use for fine debris).

• Wide spacing = Stronger, faster performance on rough, rocky terrain.

Material Quality

Choose rakes made from AR400 or Hardox 450 steel. These materials are very wear-resistant and do not easily bend even under continuous stress.

Attachment Type

• Pin-On: It is less costly but slower to swap since it requires manual pinning.

• Quick Coupler: Facilitates quick connection and disconnection; therefore, it is perfect for frequent changes of attachments.

• Hydraulic Tilt Rake: Offers the option of changing the angle and depth of the cut—thus, it is the best for advanced grading.

Manufacturer Reputation

Look for brands like:

• Werk-Brau

• TAG Manufacturing

• AMI Attachments

• Rockland

• Typhon and Sany (for OEM fitment)

The selection of a well-engineered rake from a company with a good reputation is a guarantee for a long period of service and performance that is unbiased.

Installation and Maintenance Tips

The installation of a mini excavator rake is a relatively straightforward process, and it is also easy to maintain it. Proper care will, however, prolong the device's lifespan and prevent the occurrence of expensive downtime.

Installation Steps

• Inspect the Mount: Make sure your coupler or hitch system is clear and free of dirt.

• Align Pins: Match the rake’s mounting holes with your excavator’s coupler pins.

• Secure Properly: Use safety clips or coupler locks to fasten the pins tightly.

• Hydraulic Connections (if applicable): For hydraulic rakes, attach hoses carefully and check for leaks.

• Test the Movement: Gently operate the boom to ensure the rake responds correctly and doesn’t interfere with other components.

Maintenance Guidelines

• After each use: Dirt, roots, and rocks that get stuck between the tines must be removed.

• Weekly checks: Examine welds, bolts, and pins for signs of wear or any kind of fissures.

• Joints must be lubricated regularly so as to prevent rust and guarantee easy movement.

• Storage: When out of use, the rake should be kept in a dry place, preferably on a wooden pallet to avoid moisture buildup.

Troubleshooting Common Issues

• Bent Tines: Overloading and shock by an unforgiving rock are the major causes of bending the tines - thus, heat straightening must be applied or the damaged tines be replaced.

• Hydraulic Leak: Make sure that the fittings are tight and that new O-rings have been installed without delay.

• Coupler Misalignment: Adjust or re-calibrate your quick-hitch system so that the pins do not get stressed.

Regular upkeep guarantees that the rake will work smoothly every season, and you will save money as well as lose less time during periods of wear.

Cost and Value for Money

Choosing a mini-excavator rake is one of the most brilliant decisions that a contractor can make if the need for both maneuverability and sturdiness arises. The cost of such products is spread over a wide range of features such as size, materials, and whether or not the rake is equipped with hydraulics for tilting.

Factors Affecting Price

• Material Quality – The prices of rakes, made out of high-tensile steel or Hardox 450, are twice as high as the ones of a common steel but a lot of their lifespan exceed.

• Attachment Size – The bigger the rakes are, the more steel and welding works they will need, and this will lead to high prices.

• Hydraulic Features – The addition of functions, such as tilt and rotation, not only makes the equipment more expensive but also increases the maintenance required.

• Brand Reputation – Wer-Brau, AMI, and Typhon, which are the most renowned brands, are known to charge quite high in return for the perfection of the engineering process and the length of the warranty period.

• Import and Shipping – The cost of shipping, customs' fees, local taxation shall be added to the price if you are buying your product from outside your country (e.g., from China or the U.S.).

Long-Term Value

A good-quality rake will be able to survive with some maintenance it will allow you to work with it for 5 to 10 years. Besides, this machine will save you time, fuel, and labor and will give you a great return on your investment (ROI) if, as a professional, you use your excavator all the year.

Top Manufacturers and Models

Is not everything the same as it seems with rake attachments. They differ in quality among the different makers in the worldwide market, and that is why it is essential to get to know their products and the advantages of them.

Werk-Brau

One of the longest-lasting brands in the USA, Werk-Brau, is a perfect example of the limited wear and tear problems “difficult to be avoided” with their highly durable-product rakes. They manufacture their land clearing excavator rake by using high-strength steel and fabricating the deep, curved tines for aggressive digging.

AMI Attachments

AMI, a Canadian company, focuses on the production of luxury-class attachments. Due to the performance of the AXXIS tilt rake up to 45° of tilt on each side and precision grading, it is one of the most preferred tools for landscapers.

TAG Manufacturing

Rakes from TAG are known for their compatibility and durability. The mini rake series of the company can fit the most 1.5–6 tons excavators with optimized tine spacing for maximum sifting efficiency being the main feature.

Rockland Manufacturing

Rockland offers premium rakes used for heavy-duty as well as for forestry work. The Rockland Root Rake is capable of performing tree removal, storm cleanup, and site prep without difficulty.

Typhon Attachments

The mini excavator rakes of Typhon are becoming quite popular in Asia and Europe. The Typhon’s rake attachments, which are known for their low price and sturdiness, combine perfectly with their mini excavator line (like the Terror X and XVIII models).

Safety Guidelines During Operation

However, safety is a major issue that should be considered at the forefront in any machinery operation. The use of a rake will slightly alter the safety measures to be taken into account.

Pre-Operation Checks

• Look over every pin, bolt and weld to see if it is cracked or damaged.

• Before a coupler is used, it needs to be checked making sure it is locked securely.

• Hydraulic hoses if any, should be inspected for leaks and tightness of fittings.

• Make sure there is no one and no animal in the working area.

Operational Safety Tips

• Never forcibly powered into tightly packed soil will the overloading will be less likely to occur, however, the tines can still twist.

• Do not allow speeds to reach high levels, as better control and precision will be less at that situation.

• Never do the rake work if it is near a power line, or fence or any other thing that is delicate in any way.

• Be very careful while you are working on the slopes, support yourself, do not make very fast and big arm movements.

Personal Safety

• Always be sure that you are in your full PPE (helmet, gloves, safety boots, and reflective clothing).

• Put on the driver seatbelt if you are going to drive a cab.

• Be in the constant use of hand signals or two-way radios for communication with the workers on the ground.

A safe operator is a person who not only refrains from dangerous situations but also cares for the working tool as well as the machine.

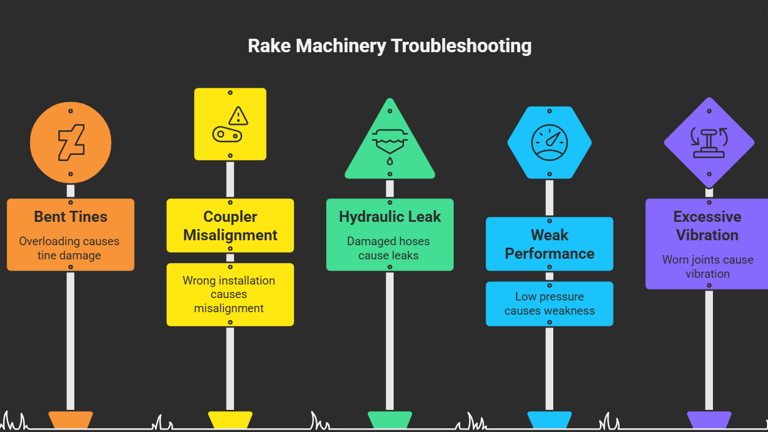

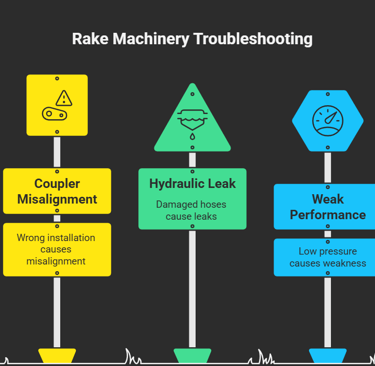

Common Problems and Troubleshooting

Conclusion

A mini excavator rake attachment is simply the most effective and useful accessories you can add to your equipment arsenal. Essentially, it is the combination of the raw power of an excavator and the delicacy of a precision land-clearing tool.

It is, therefore, that you as a landscaper may utilize the tool for terrain shaping, as a farmer for root clearing, and as a contractor for construction site prepping. In any case, this tool will make you more versatile and productive.

Getting a high-quality rake is a wise decision that will pay you back in clean results, faster completion of tasks, and less manual labor. If upkept properly and operated securely, it can be your faithful companion for years to come—thus making it one of the most brilliant attachments for any mini excavator owner.
